Maximally Stable Extremal Regions (MSER) is a feature
detector; Like the SIFT detector, the
MSER algorithm extracts from an image I a number of
co-variant regions, called MSERs. An MSER is a stable
connected component of some level sets of the
image I. Optionally, elliptical frames are attached to
the MSERs by fitting ellipses to the regions. For a more in-depth explanation
of the MSER detector, see our API reference for MSER
Extracting MSERs
Each MSERs can be identified uniquely by (at least) one of its
pixels x, as the connected component of the level set at
level I(x) which contains x. Such a pixel is
called seed of the region.
To demonstrate the usage of the MATLAB command vl_mser
we open MATLAB and load a test image
pfx = fullfile(vl_root,'data','spots.jpg') ;
I = imread(pfx) ;
image(I) ;
We then convert the image to a format that is suitable for the
vl_mser command.
I = uint8(rgb2gray(I)) ;
We compute the region seeds and the elliptical frames by
[r,f] = vl_mser(I,'MinDiversity',0.7,...
'MaxVariation',0.2,...
'Delta',10) ;
We plot the region frames by
f = vl_ertr(f) ;
vl_plotframe(f) ;
vl_ertr transposes the elliptical frame and is
required here because the vl_mser code assumes that the row index
is the first index, but the normal image convention assumes that this is the
x (column) index.
Plotting the MSERs themselves is a bit more involved as they have
arbitrary shape. To this end, we exploit two
functions: vl_erfill, which, given an image and a region
seed, returns a list of the pixels belonging to that region, and
the MATLAB built-in contour, which draws the contour lines
of a function. We start by
M = zeros(size(I)) ;
for x=r'
s = vl_erfill(I,x) ;
M(s) = M(s) + 1;
end
which computes a matrix M whose value are equal to the
number of overlapping extremal regions. Next, we use M
and contour to display the region boundaries:
figure(2) ;
clf ; imagesc(I) ; hold on ; axis equal off; colormap gray ;
[c,h]=contour(M,(0:max(M(:)))+.5) ;
set(h,'color','y','linewidth',3) ;
MSER parameters
In the original formulation, MSERs are controlled by a single
parameter Δ, which controls how the stability is
calculated. Its effect is shown in the figure below.

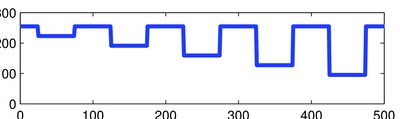

Δ. We start with a synthetic
image which has an intensity profile as shown. The bumps have
heights equal to 32, 64, 96, 128 and 160. As we increase

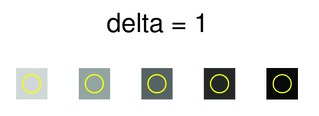

Δ, fewer and fewer regions are detected until
finally at Δ=160 there is no region
R which is stable at R(+Δ).
The stability of an extremal region R is the inverse
of the relative area variation of the region R when the
intensity level is increased by Δ. Formally, the
variation is defined as:
